Rugged Hardware

Military, Federal, and industrial organizations must often employ the latest computing technology in harsh operating environments to complete job or mission-critical tasks. Whether on the battlefield, in special operations, on border patrol, in a factory, or on an oil rig – rugged, reliable computing hardware is essential. Our rugged workstations, servers, and consoles can operate in all weather conditions and our sealed computers will continue to work submerged in water/sand.

Hexagon has been manufacturing rugged hardware since 1995. We are a leading provider of rugged servers, workstations, displays and consoles for the U.S. Navy. Hexagon equipment is on every aircraft carrier, amphibious, and surface combatant ship – over 125 active ships. Hexagon provides proven, cost-effective products, offering the significant benefits.

  • Proven, Fielded Equipment: Qualified, approved, and fielded on more than 125 U.S. Navy ships
  • Field-tested for shock and vibration, extended temperature ranges, extreme environments
  • Generations of Fielded Equipment designed in collaboration with the Navy
  • Designed for Smart Ship Technologies ships and programs
  • Designed for Lifecycle Support and Reduced TOC
  • Modular design for in-place technical refresh
  • Parts commonality to simplify sparing and maintenance
  • Designed to minimize MTTR
  • Energy Efficient –solid state and passive cooling
  • Full Lifecycle Support: Providing support for Fleet and ISEAs
  • ISO 9001:2015 certified
  • Available on GSA and Seaport-e contracts

Mobile Devices

Small Form Factor Computers

Enclosure Mountable

Rack Mountable

Consoles

Custom hardware

Hexagon designs, manufactures, and integrates rugged commercial off-the-shelf (COTS)-based products, ranging from computer consoles and displays to workstations, that are able to withstand harsh environments to meet specific customer requirements and military, industrial, and commercial specifications, including MIL-SPEC, MIL-STD, and UL.

When creating our ruggedized products, we thoroughly evaluate each component, perform static and dynamic structural analysis, and conduct preliminary tests to ensure the product can effectively withstand the severity of the field and shipboard or industrial environments. Rugged outer enclosures provide secure installation of our products and protect the internal components from extreme elements, such as high-impact shock, vibration, electromagnetic pulse, high and low temperatures, liquids, dust, salt, and other contaminates.

Hexagon US Federal has proven our excellence in providing and maintaining highly complex systems and software as well as integration platforms for land, sea, and air implementation. We design, manufacture, and integrate rugged COTS-based products, ranging from computer consoles and displays to workstations and cameras, that are able to withstand harsh environments to meet specific customer requirements conforming to a wide array of military, industrial, and commercial specifications.

Learn more about our rugged hardware design and support capabilities.

Rugged Mobile Devices

Rugged mobile technology implementations certified to operate in rugged environment and MIL standard implementations. We offer both laptops and tablets. Value added mounting and mobility accessories targeted to program needs.

Designed around the following baseline standard criteria:

  • MIL-STD-810 (Drop, Vibration, Shock, High/Low Temperature, Humidity; Altitude)
  • MIL-STD-461 (Electromagnetic)
  • IP 65 (Water / Dust)
  • ANSI C1D2 12.12.01 (Hazardous Environment)

Hexagon offers two types of Mobile Devices

  • Hexagon rugged laptop
  • Hexagon rugged tablet



For more information about Rugged Mobile Devices, contact Hexagon US Federal Sale

Rugged Enclosure-Mountable Computing Systems

Hexagon US Federal’s Enclosure-Mountable computing systems integrate proven COTS technology, field proven construction, long life cycle component support, and processing power necessary for today’s complex applications.

Our systems are the latest fielded technology to provide the next generation of trusted mission critical hardware in computing systems and long life computer architecture for a same form-fit-function installation into all standard enclosures with the simplicity of a one-to-one replacement.

Boasting durability to support your requirements in the harshest environments, our rugged enclosure-mountable computing systems are ideal when conditions demand a truly rugged workstation for land or sea applications and a proven product is required.

Our units are designed to meet the following environmental requirements:

  • Operating Temperature: –5º to +50º C (Standard).
  • Storage Temperature: –10º to +70º C
  • Relative Humidity: 0 to 95% non-condensing
  • Shock: MIL-S-901E
  • Vibration: MIL-STD-167-1
  • EMC: MIL-STD-461F
  • Airborne Noise: MIL-STD-740-1
  • Inclination: MIL-E-16400G

The features of our units include, but are not limited to:

  • Modular design for easy maintenance access to motherboard, processors, power supply, peripherals, and cooling system
  • Component support and restraint for structural reliability and increased reliability
  • Durable field proven construction
  • Long Life Cycle Component Support

Hexagon offers one Enclosure Mounted computer series

  • NEMA computers

For more information about Enclosure Mount Rugged Hardware, contact Hexagon US Federal Sales

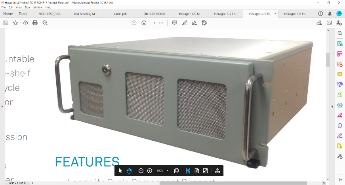

Rugged Rack-Mountable Computing Systems

Hexagon US Federal’s rugged rack-mountable computing systems integrate proven COTS technology; field proven construction, long life cycle component support, and processing power necessary for today’s complex applications.

The systems provide trusted mission critical hardware and long life computer architecture for a same “form-fit-function” installation into all standard computing rack sizes utilizing the simplicity of a one-to-one replacement methodology in a reduced overall mounting depth.

Boasting proven durability to support your requirements in the harshest environments, our rugged rack-mountable computing systems are ideal when conditions demand a truly rugged workstation for land or sea applications from a proven supplier of mission critical hardware.

Our units are designed to meet the following environmental requirements:

  • Operating Temperature: –5º to +50º C (Standard).
  • Storage Temperature: –10º to +70º C
  • Relative Humidity: 0 to 95% non-condensing
  • Shock: MIL-S-901E
  • Vibration: MIL-STD-167-1
  • EMC: MIL-STD-461F
  • Airborne Noise: MIL-STD-740-1
  • Inclination: MIL-E-16400G

The features of our units include, but are not limited to:

  • Aluminum and stainless steel construction
  • Rigid component support and restraint for structural reliability in extremely rugged environments
  • Durable field proven construction
  • Long Life Cycle Component Support

Hexagon offers three Rack Mount computer series

  • TD-R 3X7XR-17 4U i5/i7, 32GB, 4x2.5” SATA Drive, 8 expansion slots (download PDF)
  • TD-R 3X64R 4U Core 2 Quad, 8GB, 4x2.5” SATA Drive, 8 expansion slots (download PDF)
  • TD-R 3X64R-17 4U Core 2 Quad, 32GB, 4x2.5” SATA Drive, 8 expansion slots (download PDF)

For more information about Rack Mount Rugged Hardware, contact Hexagon US Federal Sales

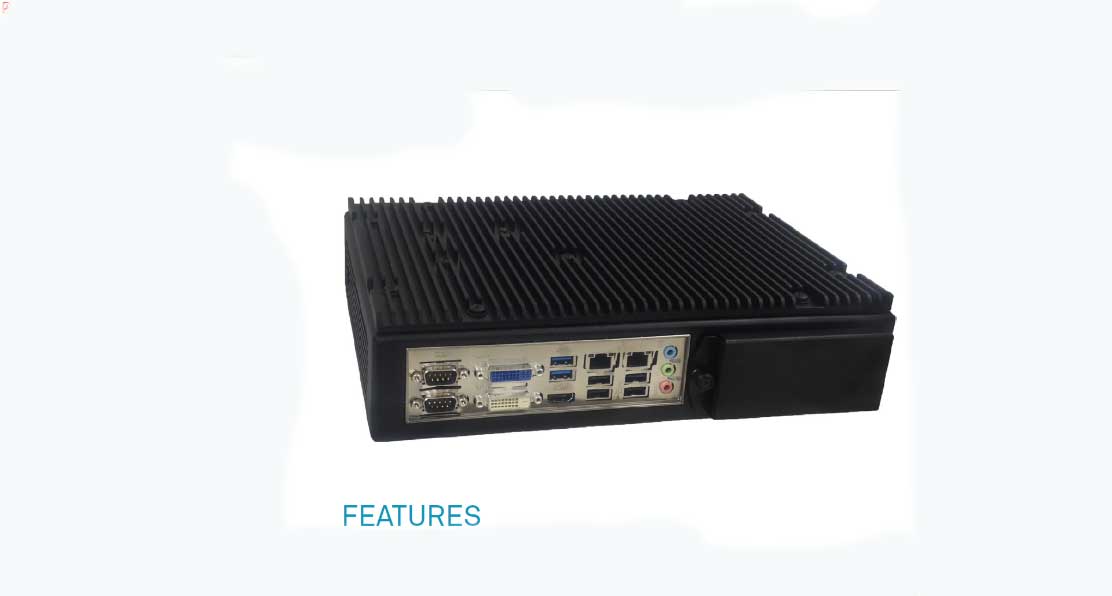

Rugged Small Form Factor Computers

The Hexagon US Federal Small Form Factor (SFF) computing systems integrate high powered, COTS technology and field proven construction methodologies necessary for today’s complex applications in an energy efficient platform.

Our state-of-the-art system technology provides trusted mission critical hardware in a small form factor without moving parts, fans or other active cooling devices. These field proven systems provide current technology interfaces supporting the latest processing technologies while boasting the design methodology of field proven systems supporting your latest hardware requirements in the harshest environments.

Our SFF systems are ideal when conditions demand high performance in a truly rugged computer system for land, sea, or air applications from a proven supplier of mission critical computing and integrated systems.

Our Our units are designed to meet the following environmental requirements:

  • Operating Temperature: –10º to +60º C (Standard)
    • Upgrade options support: –20º to +70º C
  • Storage Temperature: –35º to +80º C
  • Relative Humidity: 0 to 95% non-condensing
  • Shock: MIL-S-901E Grade A
  • Vibration: MIL-STD-167-1
  • EMC: MIL-STD-461F
  • Airborne Noise: MIL-STD-740-1
  • Inclination: MIL-E-16400G

The features of our units include, but are not limited to:

  • Aluminum and stainless steel construction
  • Component support and restraint for structural reliability in extremely rugged environments
  • Thumbscrew attached exterior door providing quick access to removable drives
  • Fanless design – No moving parts

Hexagon offers two Small Form Factor computer series


For more information about the Small Form Factor Rugged Hardware, contact Hexagon US Federal Sales

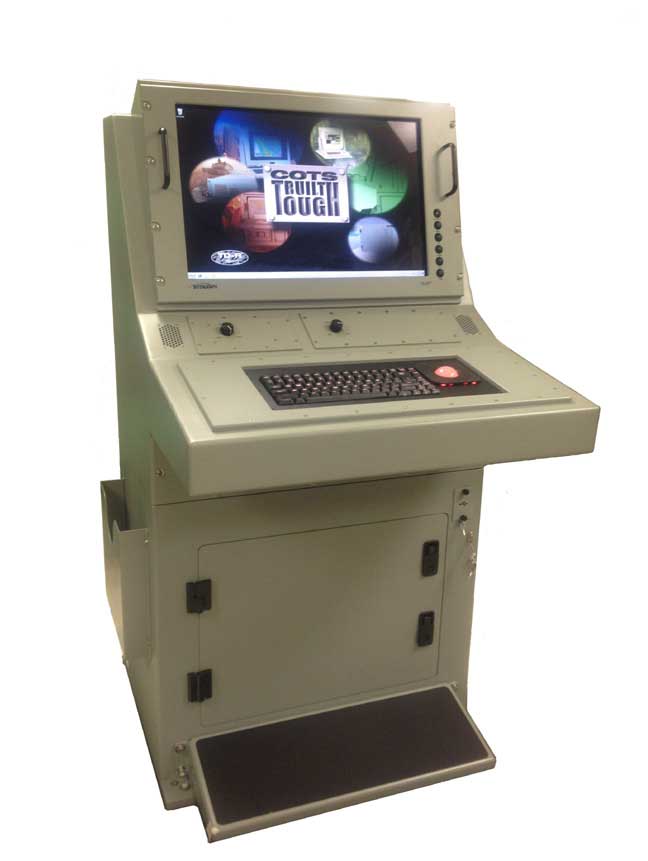

Rugged Deck/Free Standing Consoles

Hexagon US Federal Rugged Pedestal Consoles provide a long history of field proven durability serving multiple application platforms ranging from damage control to video alarm and surveillance. Our deck mounted designs include an integrated backlit keyboard and trackball assembly ergonomically patterned for sitting or standing. Our consoles can host up to three 24" LED backlit display systems and amplified integrated dual speaker system providing fully adjustable video and audio alert capabilities.

The hard mounted construction negates the need for any external isolation system and provides a lockable front door for internal physical security. The internal console chamber provides the ability for localized or remotely driven computer systems.

Our units are designed to meet the following environmental requirements:

  • Operating Temperature: –10º to +60º C (Standard).
  • Storage Temperature: –20º to +80º C
  • Relative Humidity: 0 to 95% non-condensing
  • Shock: MIL-S-901E Grade A, Class I
  • Vibration: MIL-STD-167-1
  • EMC: MIL-STD-461F
  • Airborne Noise: MIL-STD-740-1
  • Inclination: MIL-E-16400G

The features of our units, but are not limited to:

  • Provides the ability to use either local or remotely positioned computer systems including long distance bus extension
  • Offers low-profile designs and user-friendly ergonomics to meet a wide range of applications
  • Includes full function rugged backlit keyboard with integrated trackball
  • Incorporates flexible design models allowing multiple configurations
  • Free standing-deck mounted—no isolation required, providing reduced mounting/excursion profile
  • Bottom or rear cable entry using a variety of sealing gland options
  • Lockable front door featuring secure, convenient access to internal I/O

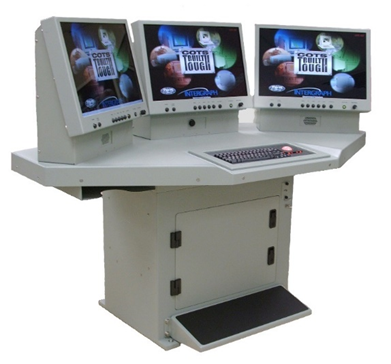

Hexagon offers three types of free standing Consoles with multiple displays


For more information about the Rugged Consoles, contact Hexagon US Federal Sales

Custom and Special-Purpose Rugged Hardware

In addition to the standard products listed above, Hexagon also offers special-purpose and custom rugged hardware developed to meet specific program requirements and needs. We also provide rugged racks, displays, network components, and transit cases.

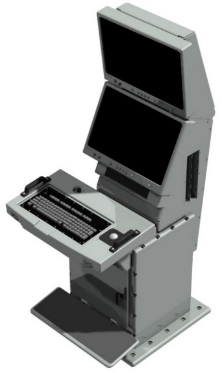

Helm Console

For more information about the Rugged Hardware custom components, contact Hexagon US Federal Sales


Learn more about our rugged hardware engineering services, design and support capabilities
